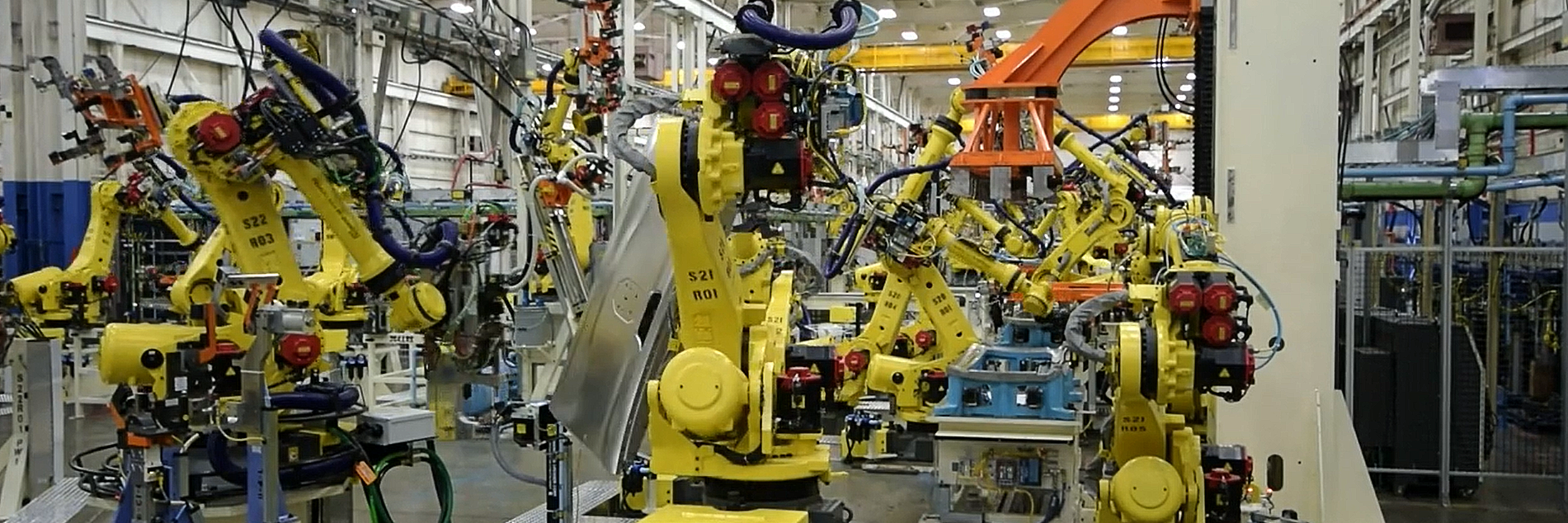

Valiant TMS Use Case Header Image Robots
Case Study

P3 Technology Use Case For Auto A-Pillar Latch Tool Handle

7월 20, 2023

P3 Technology produces the right 3D printed surface finish for Valiant TMS.

Intelligent Automation Solutions for Aerospace and Automotive Industries

Valiant TMS develops intelligent production automation systems for automotive and aircraft manufacturing companies worldwide. Valiant TMS leverages current technologies, such as additive manufacturing, to meet its customer’s requirements, and the Valiant TMS Additive Manufacturing Lab has multiple systems capable of printing polymer and metal.

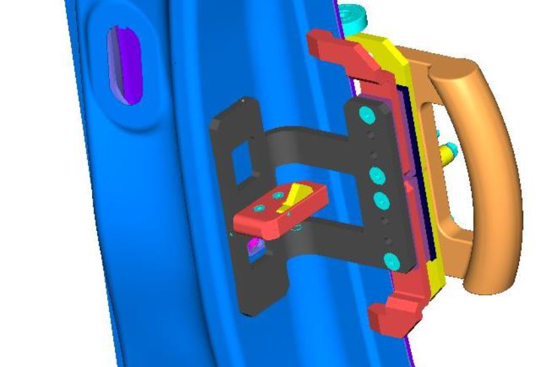

valiant use case tool handle render in cad

The Challenge: Meeting Ergonomic Requirements with Smooth Surface Finish

A new hand tool used to attach an auto A-pillar door latch required a combination of ergonomics, strength, and minimal weight. Engineers wanted to 3D print the tool since it would meet these requirements better than a machined metal alternative. However, an essential aspect of the ergonomic design was achieving a very smooth, no-defect surface finish in a material that would provide sufficient strength.

The Solution: Leveraging P3 Technology on the Origin One 3D Printer

The Valiant TMS Additive Manufacturing Lab chose to print the latch tool with the Origin One 3D printer using advanced digital light processing (DLP) P3 technology. The Origin One offered benefits on multiple fronts, including a broad range of materials and an injection mold-like surface finish. In addition, engineers used Dura56, a photopolymer material developed by Loctite® specifically for the Stratasys Origin One, for its quick print speed and high impact toughness. P3 technology on the Origin One is also more isotropic, offering higher strength than non-isotropic additive methods.

Explore the Origin One 3D Printer

The Impact: Significant Cost Reduction and Faster Print Time with Dura56 Material

3D printing the tool with the Origin One resulted in a 78% cost reduction and 79% faster print time compared to other additive processes.

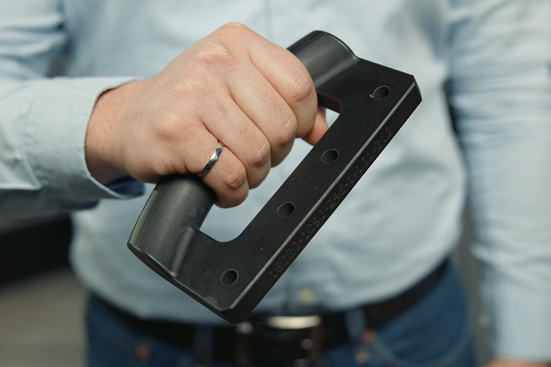

Additionally, the combination of the Origin One and Dura56 material achieved a very smooth surface finish, which provides a comfortable grip for operators repetitively using the tool on the assembly line.

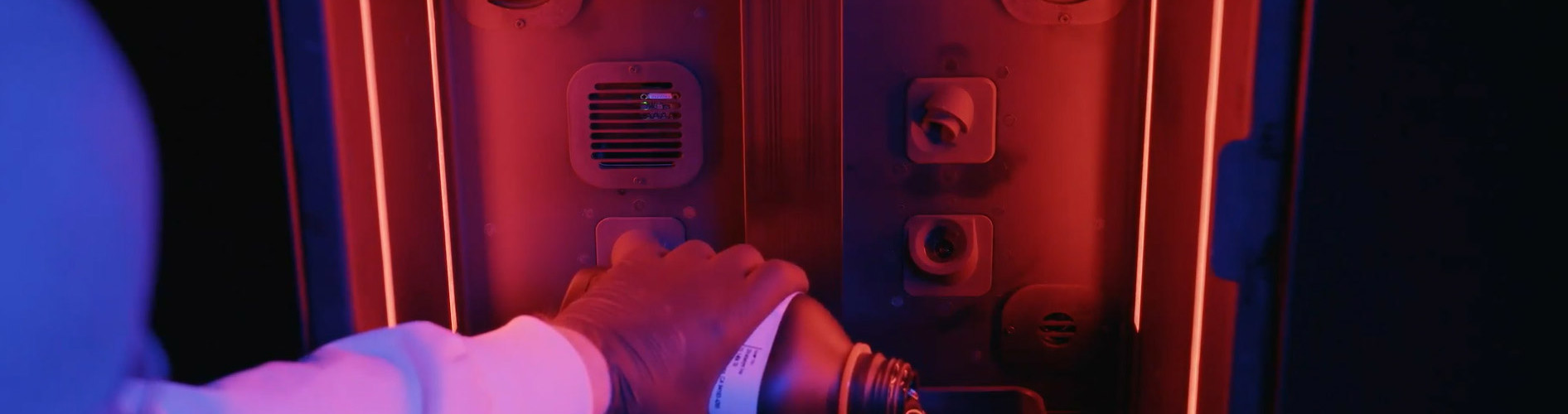

P3 Technology Feature of Origin One Build Chamber.

PDF 다운로드

이 사용 사례를 PDF 형식으로 다운로드하십시오. Valiant TMS가 어떻게 이전 방법에 비해 프린트 제작 시간을 79% 단축하고 78%의 추가 비용 절감 효과를 달성했는지 알 수 있습니다.

사용 사례 PDF 다운로드
